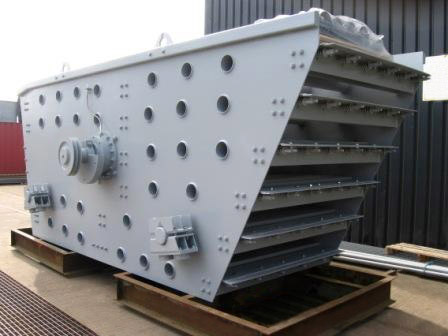

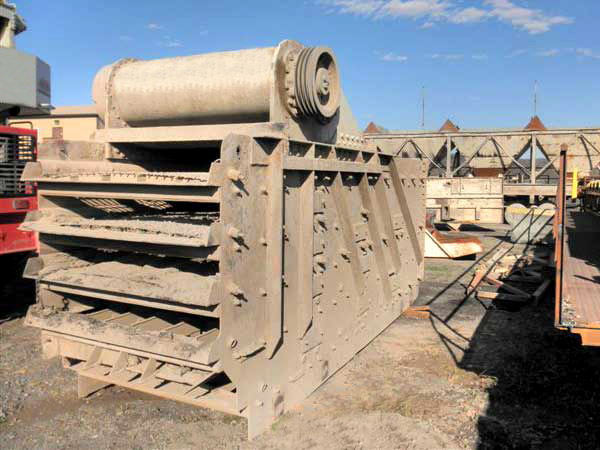

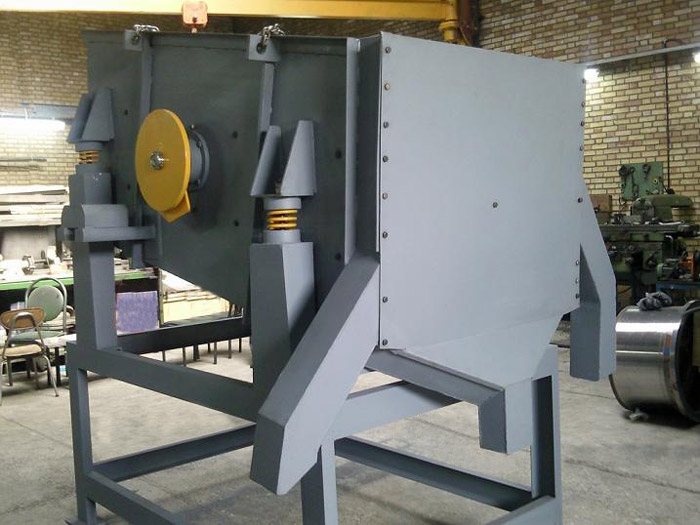

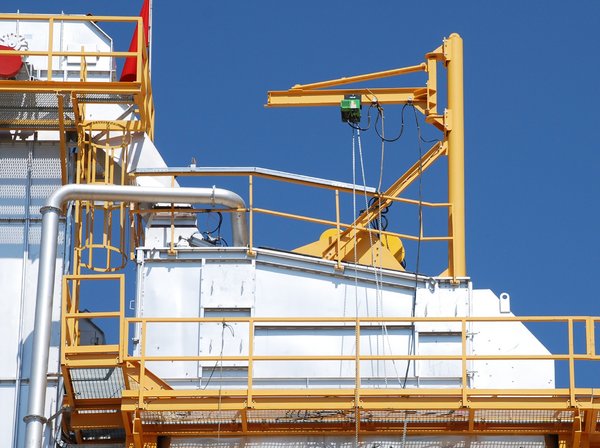

The Asphalt Plant Screen is specially designed to meet the demanding requirements of asphalt plant operations. Both the F Screen and F60 have been adapted to provide special requirements involving sizing, collection and dust control, needed in asphalt plant screening.
Versatility allows the user to select from a number of screen arrangements to suit your particular requirements. Special conveyor pans, ball deck arrangements, and Symons end tension cloth arrangement are available as optional equipment.
Standard double deck arrangement most used on Asphalt Plant Screens for 4-Bin mix. This configuration includes an opening in the bottom deck using four sizes of wire cloth to provide four finished products and an oversize.
A variation of the double deck arrangement using the Symons Split Deck feature. A special half deck cloth is introduced between the No.1 cloth and No. 2 cloth to reduce the thickness of the pad of material going to the No. 1 cloth, thus increasing capacity and improving screening accuracy. This arrangement is particularly effective on fine size mixes.
Utilizing the Symons Split Deck feature as an additional sizing deck to provide five finished products. This configuration is most useful where a variety of mixes are being produced with the same wire cloth set-up.
The popular 3 1/2 deck arrangement used on many of the larger size Asphalt Plant Screens. It provides the maximum screening area for the No. 1 and No. 2 cloths to meet the high tonnage requirements of big production plants.
A variation of the standard 3 1/2 deck arrangement to provide five finished products plus oversize. Similar to the 4-Bin set-up near maximum screening area is available on the No. 1 and No. 2 cloths for high tonnage operation.
